Shelly Mini 1 Gen 3 relais WIFI pour Domotique

Description

Shelly Mini 1 Gen 3 relais WIFI pour Domotique — produit officiel Shelly (réf. 364-stdomo). Disponible chez Tech au Choix avec garantie constructeur et livraison rapide au Maroc.

Présentation

Shelly mini 1 gen 3 maroc est un relais Wi-Fi ou micromodule interrupteur WiFi Shelly 1 permet de commander l'alimentation d'appareils jusqu'à 16A1 mais aussi, grâce à sa sortie à "contact sec" de commander un portail ou porte de garage disposant de ce type d'entrée.

Caractéristiques principales

Equipped with a new processor & increased flash memory – ESP Shelly

Improved durability of terminals

Supports up to 8 A at 240 VAC and 5 A at 30 VDC

Dry contacts (potential-free)? – option for contactor control

Wi-Fi range extender & Bluetooth gateway

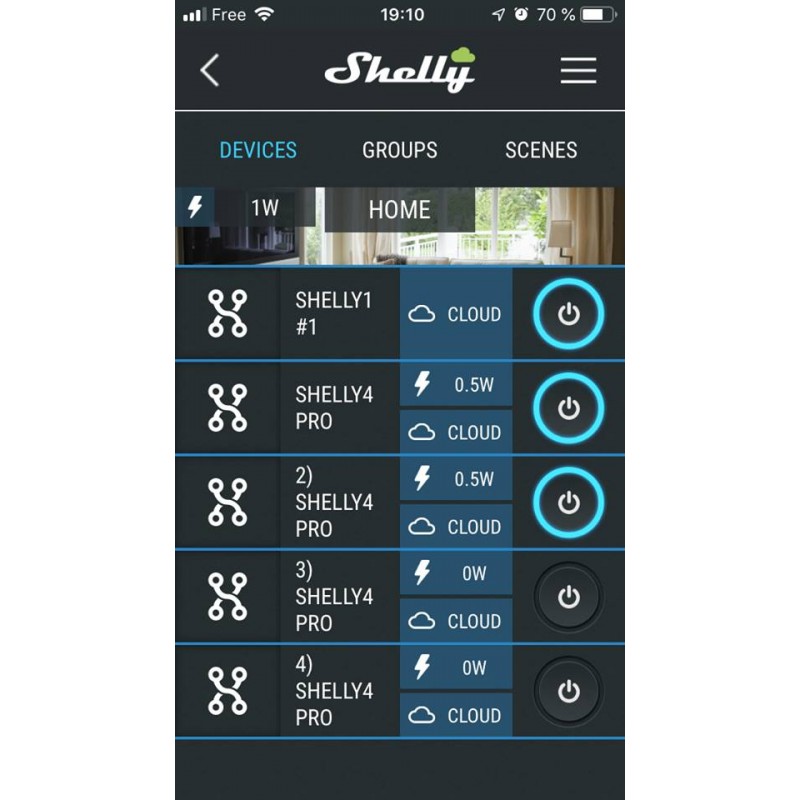

Non hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Accueil Assistant or your preferred automation system

Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Supports KNXnet / IP communication

pecifications

Quantité

Value

Physical

Size (HxWxD):

29x34x16 ±0.5 mm / 1.34×1.11×0.63 ±0.02 in

Weight:

19 ±1 g / 0.65 ±0.04 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in

Mounting:

Wall box

Shell material:

Plastic

Shell color:

Blue, C-95%; M-53%; Y-0%; K-0%

Terminal Color:

Black

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

110 – 240 VAC

Relay:

Dry, NO contact, 1-pole, µ contact

Power consumption:

< 1>

External protection:

Tripping characteristic B or C,

max. 10A max. rated current,

min. 6 kA interrupting rating,

energy limiting class 3

Output circuits ratings

Max. switching voltage:

240 VAC

30 VDC

Max. switching current:

8 A/240 VAC

5 A/30 VDC

Max. output power:

2000 W/240 VAC

150 W/30 VDC

Voltage protection / Cutoff:

Non

Current protection / Cutoff:

Non

Max power protection / Cutoff:

Non

Sensors, meters

Internal-temperature sensor:

Oui

Radio

Wi-Fi

Protocol:

802.11 b/g/n

RF band:

2401 – 2495 ?Hz

Max. RF power:

< 20>

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors

(Depends on local conditions)

Bluetooth

Protocol:

4.2

RF band:

2400 – 2483.5 MHz

Max. RF power:

< 4>

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors

(Depends on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C38F

Flash:

8 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Oui

MQTT:

Oui

UDP:

Oui

Advanced schedules:

Oui

KVS (Key-Value Boutique):

Oui

Points forts

• Equipped with a new processor & increased flash memory – ESP Shelly
• Improved durability of terminals
• Supports up to 8 A at 240 VAC and 5 A at 30 VDC
• Dry contacts (potential-free)? – option for contactor control
• Wi-Fi range extender & Bluetooth gateway
• Non hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Accueil Assistant or your preferred automation system
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
• Supports KNXnet / IP communication
• 240 VAC
• 30 VDC
• 8 A/240 VAC
• 5 A/30 VDC
• 2000 W/240 VAC
• 150 W/30 VDC

Fiche technique

Caractéristiques

• Quantité : Value
• Size (HxWxD): : 29x34x16 ±0.5 mm / 1.34×1.11×0.63 ±0.02 in
• Weight: : 19 ±1 g / 0.65 ±0.04 oz
• Screw terminals max torque: : 0.4 Nm / 3.5 lbin
• Conductor cross section: : 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
• Conductor stripped length: : 6 to 7 mm / 0.24 to 0.28 in
• Mounting: : Wall box
• Shell material: : Plastic
• Shell color: : Blue, C-95%; M-53%; Y-0%; K-0%
• Terminal Color: : Black
• Ambient working temperature: : -20 °C to 40 °C / -5 °F to 105 °F
• Humidity: : 30 % to 70 % RH
• Max. altitude: : 2000 m / 6562 ft
• Power supply: : 110 – 240 VAC
• Relay: : Dry, NO contact, 1-pole, µ contact
• Power consumption: : < 1>
• External protection: : Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
• Max. switching voltage: : 240 VAC 30 VDC
• Max. switching current: : 8 A/240 VAC 5 A/30 VDC
• Max. output power: : 2000 W/240 VAC 150 W/30 VDC
• Voltage protection / Cutoff: : Non
• Current protection / Cutoff: : Non
• Max power protection / Cutoff: : Non
• Internal-temperature sensor: : Oui
• Protocol: : 802.11 b/g/n
• RF band: : 2401 – 2495 ?Hz
• Max. RF power: : < 20>
• Range: : Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
• Protocol: : 4.2
• RF band: : 2400 – 2483.5 MHz
• Max. RF power: : < 4>
• Range: : Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
• CPU: : ESP-Shelly-C38F
• Flash: : 8 MB
• Schedules: : 20
• Webhooks (URL actions): : 20 with 5 URLs per hook
• Scripting: : Oui
• MQTT: : Oui
• UDP: : Oui
• Advanced schedules: : Oui
• KVS (Key-Value Boutique): : Oui
